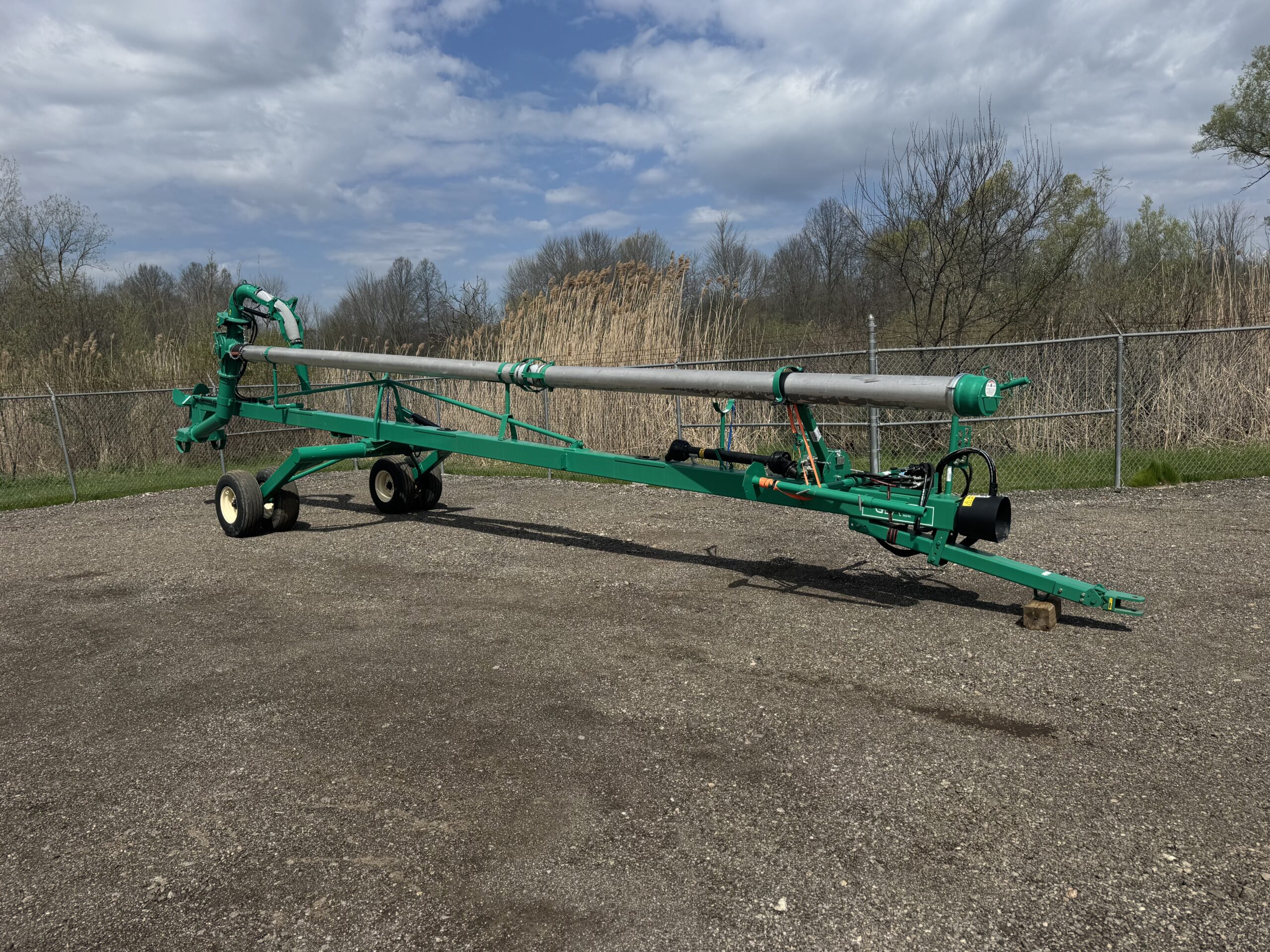

Lagoon Agi-Pompe – Powerful, Reliable Manure Homogenization and Transfer
The Lagoon Agi-Pompe is a high-performance tractor-driven pump designed to quickly homogenize and transfer liquid manure from lagoons and storage facilities. Built tough for demanding farm conditions, it delivers exceptional agitation power, fast loading, and long-term durability with minimal maintenance.
Typical Applications
Ideal for dairy, hog, and other livestock operations. This 42′ Lagoon Agi-Pompe model works efficiently with tractors at 80 HP (540 RPM). It excels at breaking up crusts and solids in lagoons, creating uniform liquid manure for easier pumping and application.
Whether you need fast homogenization or high-volume transfer, the Lagoon Agi-Pompe is engineered for reliability, power, and reduced downtime – helping you get the job done quicker and with less hassle.
Strong. Efficient. Built to Last.
Key Features & Benefits:

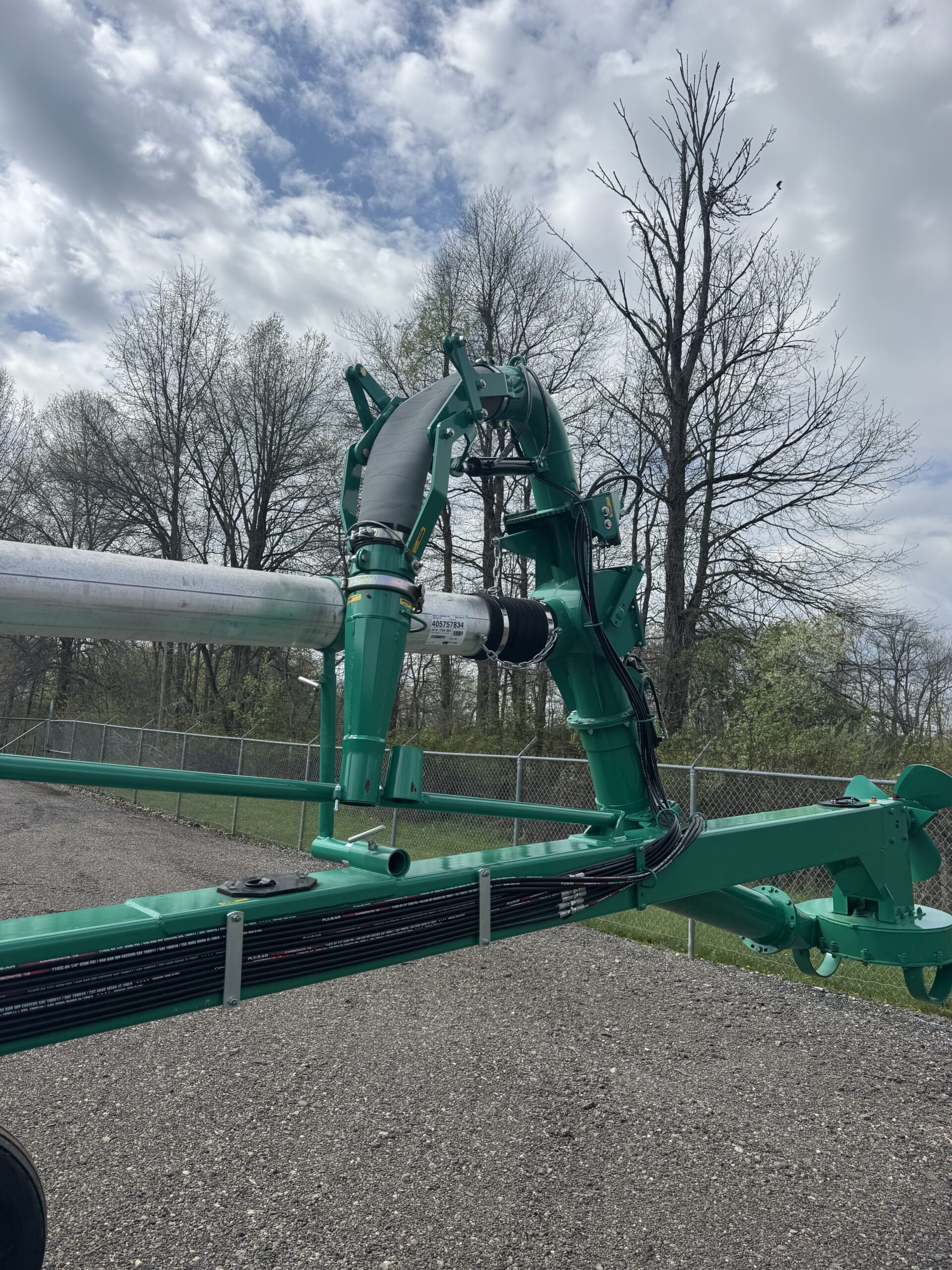

Efficient Dual-Function Operation: 6″ (150 mm) aluminum discharge (8″ / 200 mm available for even faster loading) with a directional valve that lets you switch between agitation and transfer – even at low RPM.

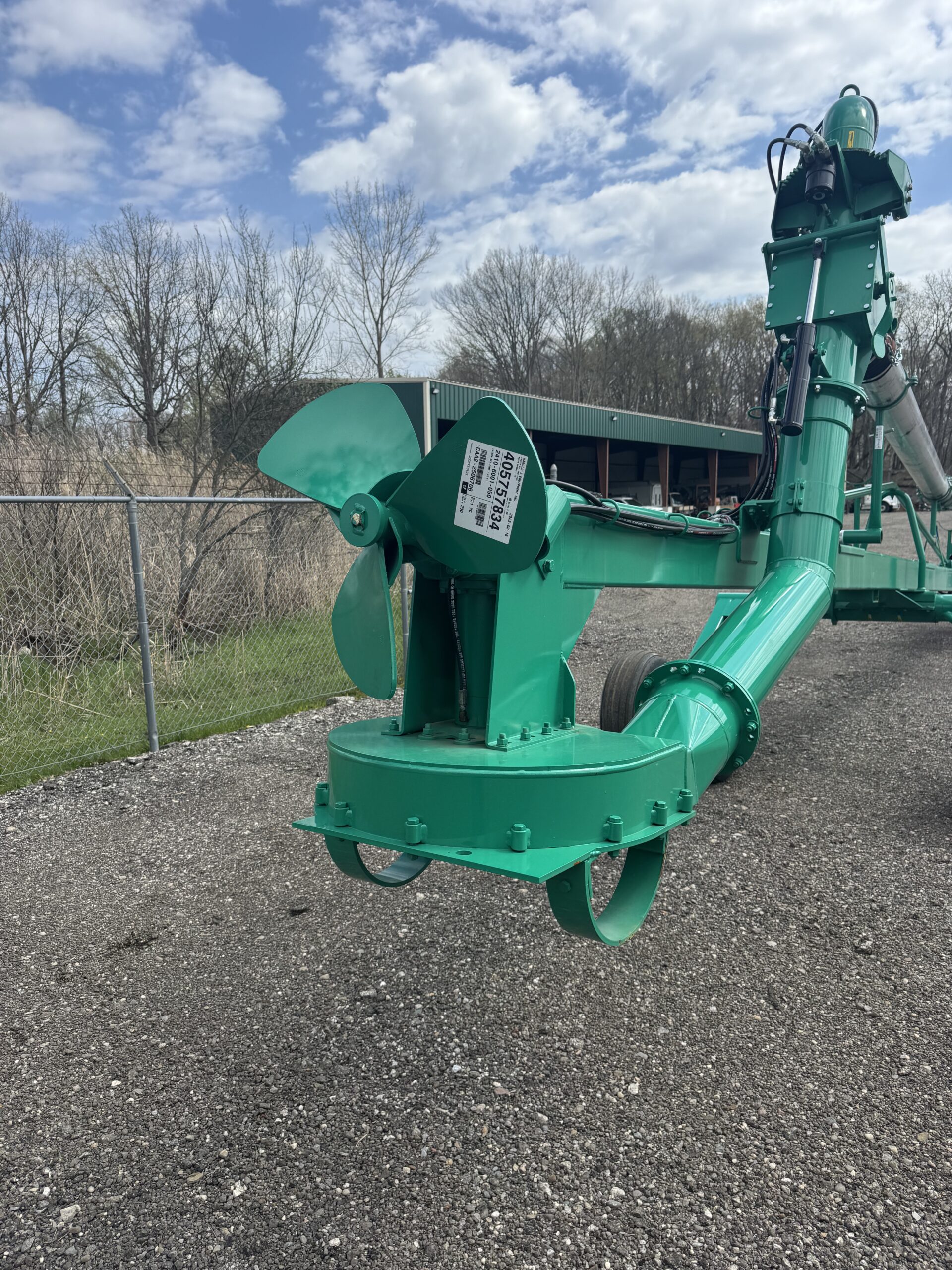

Superior Agitation Performance: Wide operating range anti-swirl nozzle with 320° horizontal rotation and 130° vertical articulation, plus a 4″ adjustable nozzle and double-hinged design for constant flow with minimal restriction.

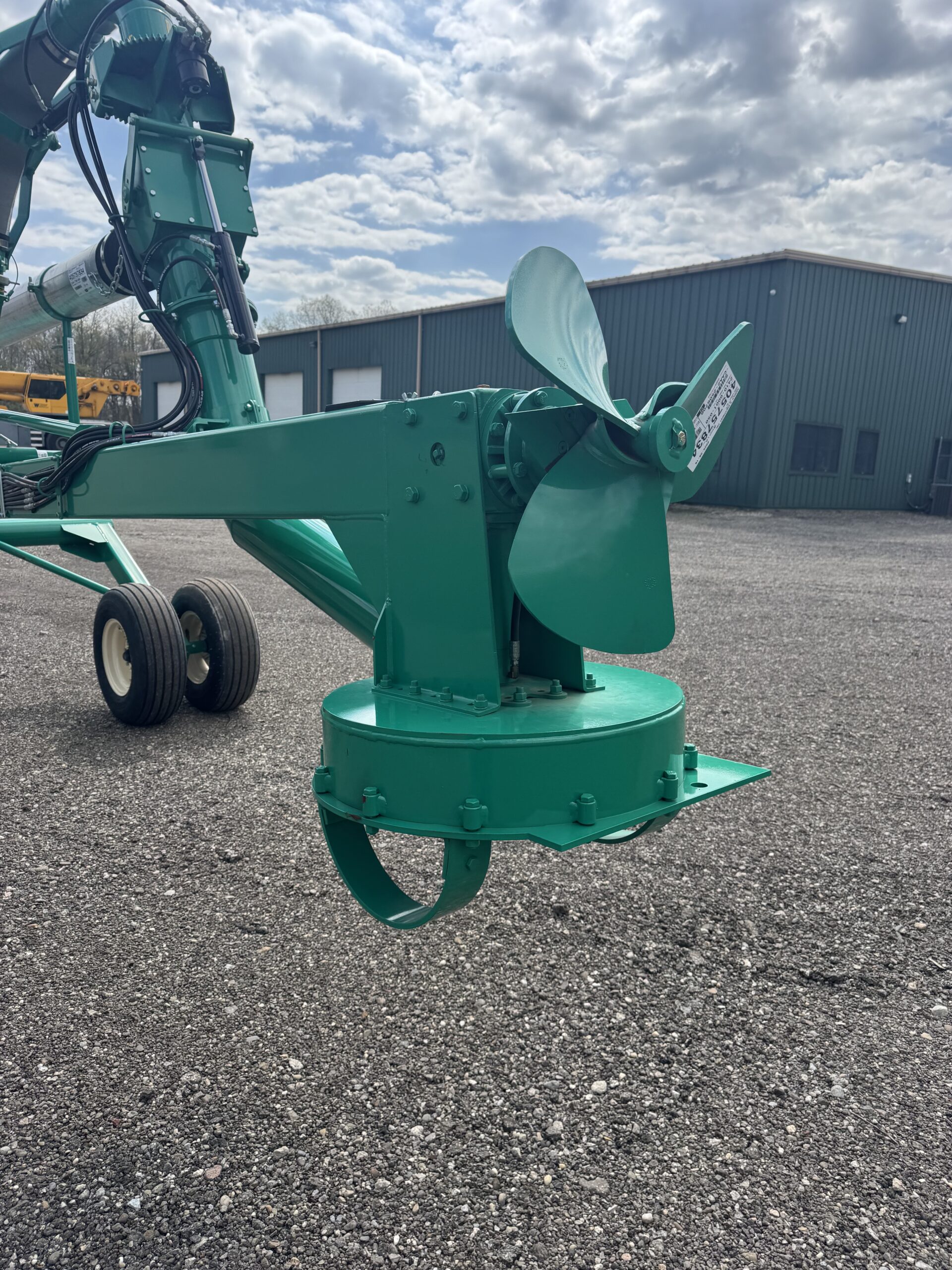

High-Volume Output: 20″ or 26″ impeller and 20″ or 24″ propeller deliver up to 21,500 US gpm (81,386 lpm) in both loading and agitation modes.

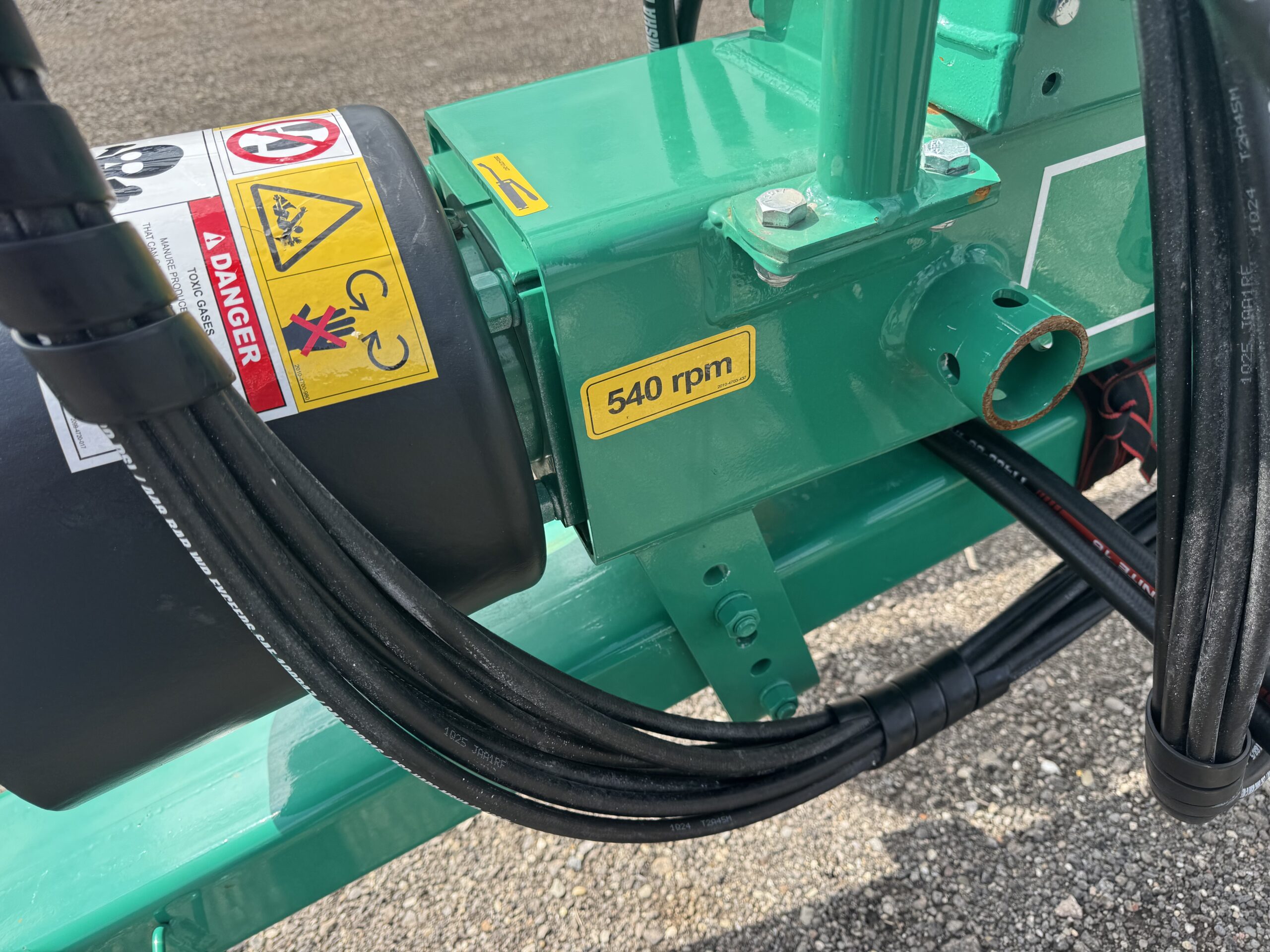

Heavy-Duty Driveline: Equipped with a #55 PTO driveline and low-maintenance gearbox featuring a 3-seal protection system against contamination. Heavy-duty gearbox option available.
Easy Maintenance & Longevity:
Easy-access driveline joint.
Remote Grease Line Kit for lubricating bearings without removing the pump.
Abrasion Resistant steel impeller housing.
Knife kit on the propeller to cut fibrous material and improve manure flow.

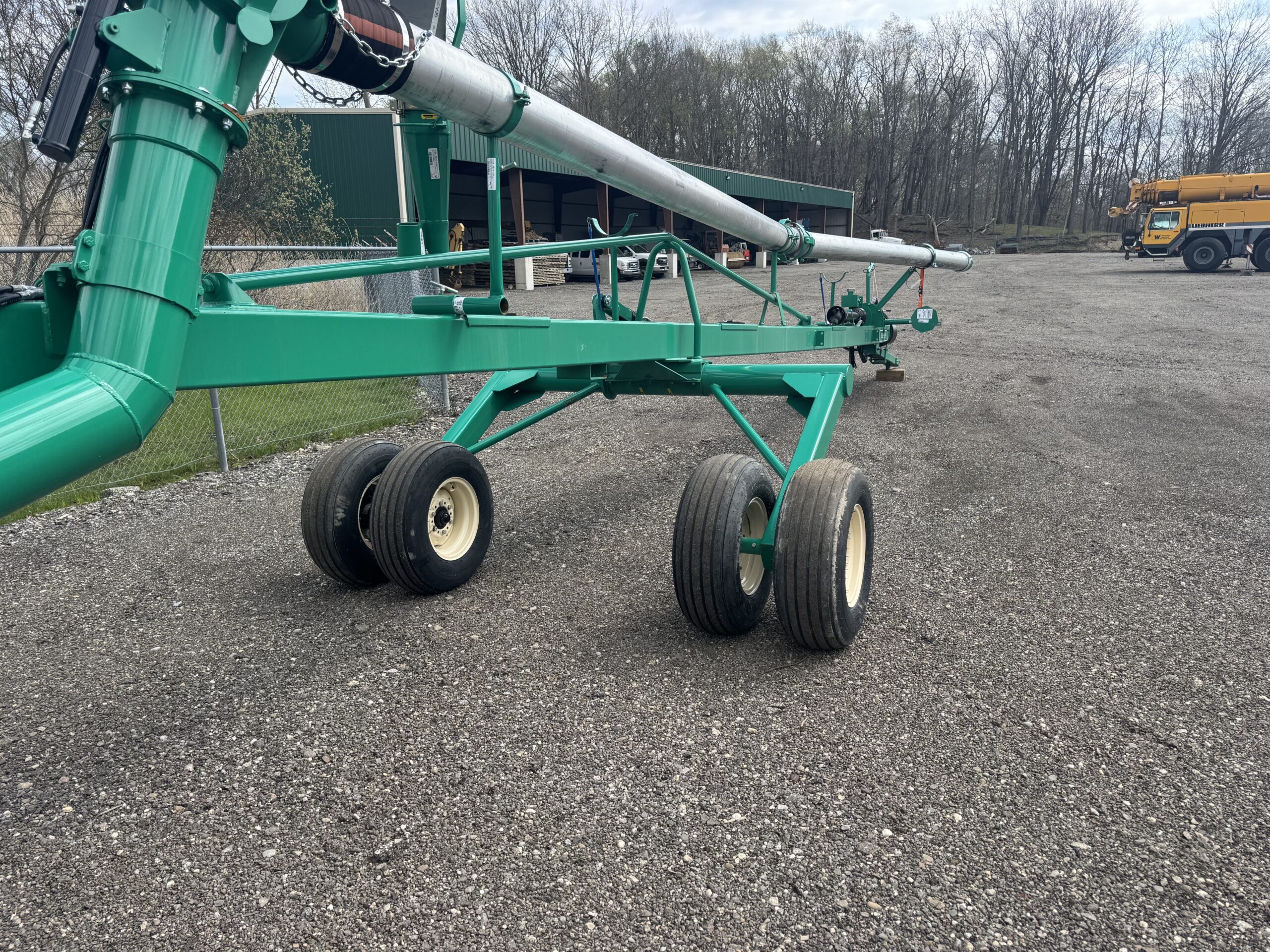

Stable & Adjustable: Height-adjustable hinged undercarriage with flotation tires for excellent stability and positioning.
